Цена :  24 890 руб Код: 44761 Наличие: Нет Производитель: Netgear

Network Protocol and Standards Compatibility

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z 1000BASE-X
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control

Layer 2 Services
IEEE 802.1Q static VLAN (up to 512)
IEEE 802.1p Class of Service (CoS)
IEEE 802.1D Spanning Tree Protocol
MAC-based VLAN
Voice VLAN
Guest VLAN
IP subnet-based VLAN
IEEE 802.1v protocol VLAN & port VLAN
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.3ad link aggregation (Static, LACP)
IGMP querier
IGMP v1, v2, v3 snooping support
Static multicast filtering
Ingress rate limit in 1Kbps increments
Protected port
Private Group VLAN
Double VLAN (Q-in-Q)
MLD v1, v2 snooping

Layer 3 Services
ARP caching

Security Service
IEEE 802.1x port access authentication
Network storm protection, including broadcast, multicast and unicast traffic
Protected port
Private Group VLAN
MAC filter
Port security
DoS
DHCP snooping
IP Source Guard
Dynamic ARP Inspection
RADIUS (RFC 2865)
RADIUS accounting
TACACS+
Access control lists - MAC, IP, TCP
Diffserv QoS (RFC 2998)

Switch Management Specifications
SNMP v1, v2c, v3 with multiple IP addresses
RFC 1157, 1901-1910, 2574, 2575
RFC 768 UDP
RFC 854-859 telnet
RFC 951 BOOTP
RFC 1213 MIB II
RFC 1757 RMON groups 1,2,3, and 9
RFC 1215 SNMP traps
RFC 1493 bridge MIB
RFC 1643 Ethernet interface MIB
RFC 1534 DHCP and BOOTP interoperation
RFC 2030 Simple Network Time Protocol (SNTP)
RFC 2131, 2132 DHCP and BOOTP
Private enterprise MIB
Port mirroring support (many-to-one)
CPU traffic monitoring
SYSLOG
TFTP, SFTP, HTTP, SCP, or local USB flash firmware upgrade
Port description
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)
DHCP server
DHCP/BOOTP relay (RFC 3046, option 82)
DHCP L2 relay
DNS caching

Single IP Address Management
(firmware version 7.3 or higher)
Manage up to 48 fully managed switches
Feature can be used with the following models:
FSM726E, FSM7226RS, FSM7250RS
FSM7328S, FSM7352S, FSM7328PS, FSM7352PS
GSM7224R, GSM7248R
GSM7328S, GSM7328FS, GSM7352S
FSM726v3
GSM7224v2
GSM7248v2

User Interfaces
Command-line interface (CLI) via console port
Prosafe Control Center Web-based management via embedded HTTP server protected with Secured Sockets Layer (HTTPS)
(SSLv3) or Transport Layer Security (TLS v1)
Telnet remote login (5 sessions) securable with Secure Shell (SSH v1.5, v2)

LEDs
Per port: Speed, link, activity
Per device: Power, fan status

Physical Interfaces
24 RJ-45 connectors for 10BASE-T, 100BASE-TX (Auto Uplink and auto negotiate on all ports)
2 1000Base-T with optional SFP connectors for fiber connection
RS-232 console port

Performance Specifications
Forwarding modes: Store and forward
Bandwidth: 8.8 Gbps; 6.5 Mpps
Switch latency: Less than 80 microseconds for 64-byte frames
System memory: 128 MB
Packet buffer memory: 1 MB
Code storage (flash): 32 MB
MAC address size: 8 K
Number of VLANs: 512 (1-4093)
Number of trunks: 24
Number of QoS queues: 8
Jumbo frame support: up to 9 K packet size
Number of Mulitcast groups: 256

Electrical Specifications
Power consumption: 15W
100-240V AC/50-60 Hz universal input

Physical Specifications
Dimensions (w x d x h):
440 x 205 x 43 mm
(17.32 x 8.1 x 1.7 in)
Weight: 2.8 kg (6.1 lb)
Acoustic noise: (ANSI-S10.12) 36.6 dB
Fan speed: thermal controlled up to 6000 rpm
Heat dissipation: 50 Btu/hr
Mean time between failures (MTBF):
562,110 hours (~64 years)
Thermal sensor

Environmental Specifications
Operating temperature: -5° to 50° C
(23° to 131° F)
Storage temperature: -20° to 70° C
(-4° to 158° F)
Operating humidity: 90% maximum relative humidity, non-condensing
Storage humidity: 95% maximum relative humidity, non-condensing
Operating altitude: 10,000 ft
(3,000 m) maximum
Storage altitude: 10,000 ft
(3,000 m) maximum

Electromagnetic Emissions
CE mark, commercial
FCC Part 15 Class A
VCCI Class A
EN 55022 (CISPR 22), Class A
C-Tick

Electromagnetic Immunity
EN 50082-1, EN 55024

Safety
CE mark, commercial
CSA certified (CSA 22.2 #950)
UL listed (UL 1950)
CUL IEC 950
EN 60950

Warranty and Support
ProSafe Lifetime Warranty†
ProSupport 24x7 Advanced Technical Support*
Next business day onsite hardware replacement support, 3 years (included)**

Package Contents

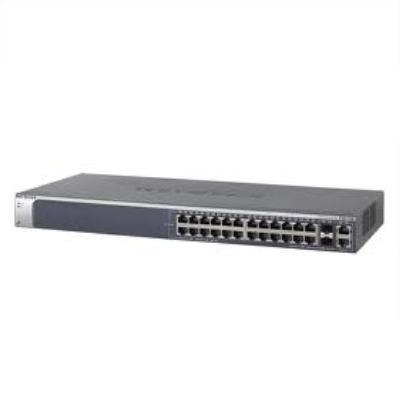

ProSafe L2 Managed Switch (FSM726v3)
Power cable
Null modem cable
Rubber footpads for tabletop installation
Rack-mount kit
Quick Installation guide
Resource CD-ROM with user manual
ProSafe NMS100 30-Day Trial CD-ROM
Warranty/support information card

NETGEAR Related Products
1000BASE-SX SFP GBIC (AGM731F)
1000BASE-LX SPF GBIC (AGM732F)
1000BASE-ZX SFP GBIC (AGM733)
NMS100 Network Management Software

ProSupport™ Service Packs Available
XPressHW, Category 1: PRR0331 (3-year next-business day hardware replacement contract, applicable where next business day onsite hardware replacement is not available)

Ordering Information
North America: FSM726-300NAS
Europe: FSM726-300EUS
Asia: FSM726-300AJS

*Basic technical support provided for 90 days from date of purchase.
†Lifetime warranty for product purchased after 05/01/2007. For product purchased before 05/01/2007, warranty is 5 years.
** See http://onsite.netgear.com for coverage, availability and terms and conditions.
